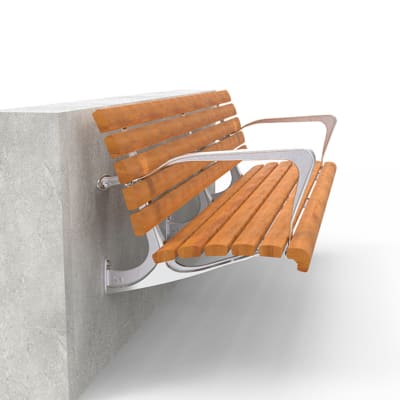

Timeless wall-mounted cantilevered seat AS1428.2. Hardwood battens with an elegant cast aluminium frame in 27 powder-coat finishes or polished.

Botton + Gardiner

Features

AS1428.2

Product Specifications

Description

Referencing Paris’s famous wrought ironwork, curved cast aluminium framing is complemented by muscular hardwood, to offer a timeless Urban cantilevered seat AS1428.2. With the new accessible armrests and correct installation, the design complies with AS1428.2 Accessibility guidelines for projects meeting DDA requirements making it ideal for council parks, shopping centres, outdoor university areas and aged care villages. Finishes include 5 hardwood colours and 27 powder-coat finishes or a polished aluminium finish. Urban is close to our heart; a classic, elegant, and highly functional collection that works in almost any public space.

Made In Australia
Dimensions

Hardwood
1800mmW x 600mmD x 770mmH

Existing structural wall by others - recommended installed seat height of 440mm gives you an Accessible arm height of 670mm

Batten Type

Hardwood
Blackbutt, Spotted Gum, Mixed Red -
Pine, Mahogany, Ebony Oil

Frame

Cast aluminium in a powder-coat or polished finish

Accessible armrest: cast aluminium in a powder-coat or polished finish

Powder Coat

Core
White (satin), Black (satin), Charcoal (satin), Palladium Silver (satin), Matt Black (matt), Pearl White (gloss)

Solid
Coffee (satin), Cove (satin), Monument (matt), Medium Bronze Kinetic (flat)

Textured
Core Ten (textured metallic), Asteroid (textured metallic), Bass (textured metallic), Textura Black (textured), Textura Monument (textured), Textura White (textured)

Signature
Deep Ocean (satin), Wedgewood (satin), Mangrove (satin), Territory Red (matt), Claypot (satin), Paperbark (satin)

Bold
Bondi Blue (gloss), Leaf (satin), Sensation (gloss), Lobster (satin), Moonlight (satin)

Sustainability

Certified Hardwood
All hardwood is sourced from sustainable forests certified by the Program for the Endorsement of Forest Certification (PEFC), the world’s largest forestry certification system.

Recycled Materials
We locally source our aluminium. It means we know it uses recycled content and is 100% recyclable.

Duraslat™ XG is made from 90% of recycled hardwood fibres and reclaimed plastic materials, which reduces demand for virgin materials.

Low Pollutants
Our powder-coating process doesn’t emit Volatile Organic Compounds (VOCs) and has Environmental Product Declarations (EPDs).

Warranty

5-year warranty. View the warranty for more details.

Lead Time

4-6 weeks

Assembly & Delivery

Shipped fully assembled on pallets.

Fixing Detail

To meet AS1428.2, this item needs to be installed to the correct seat height: 400-450mm

Fixed to a structural wall by others. Anchors not included.

How to Specify

Select your batten finish
Select your frame finish
Select your armrest finish

Care Instructions

Hardwood
Cleaning
Remove any loose surface deposits with a soft bristled brush and wipe down with fresh water and a non-abrasive cloth.

Oiling
Oiling of timber will postpone natural greying, repel moisture, improve mould resistance, help maintain a smooth surface texture and enhance the grain and colour.

To maintain, lightly sand rough areas of timber and brush on one coat of timber decking oil every 6 months or as required.

Powder-Coat
Cleaning
Carefully remove any loose surface deposits with a wet sponge or soft bristled brush.

Use a soft (non-abrasive) cloth or brush and a diluted solution of mild detergent and warm water.

Ensure surfaces are thoroughly rinsed with clean fresh water after cleaning to remove all residues.

Never use thinners, abrasive cleaning agents, alcohol-based, acid or alkali cleaning agents.

Additional Comments

Important: Hardwood is the only finish we can achieve a 30mm radius to a 30mm thick front edge batten outlined in AS1428.2. Whilst all the other key AS1428.2 dimensional guidelines are still met with Duraslat™ XG, Aluminium and Alugrain battens you will need to speak to your accessibility consultant for project specific advice on meeting overall DDA compliance for your site. Contact us for more information.

Local manufacture allows us to tailor the length, use a hardwood species to your custom requirements or Add On accessories such as memorial plaques and skate stoppers.

Public spaces can be vulnerable to high levels or wear and tear or vandalism, replacement parts available as required.
