Precast Concrete White Granite Brushed

Precast Concrete White Granite Sandblasted

Precast Concrete Grey Granite Brushed

Precast Concrete Grey Granite Sandblasted

Precast Concrete White Marble Brushed

Precast Concrete White Marble Sandblasted

Precast Concrete Black Marble Brushed

Precast Concrete Black Marble Sandblasted

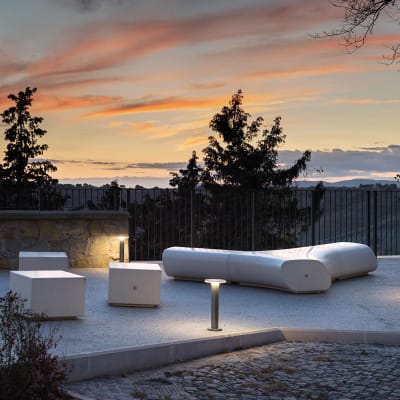

Modular monolithic seating. Organic-shaped linear and curved modules made of precast concrete with stone aggregate to suit many environments.

Designed by: Pio & Tito Toso

Product Specification

Product Specifications

Description		Tree Line, designed by Pio & Tito Toso, is a stunning mix of organic curves, natural materiality with elegant modularity. This contemporary collection includes linear benches and seats in 2 sizes, a curved element and Y-shaped element to allow for a huge array of compositions. The solid precast concrete features white or grey granite and white or black marble stone aggregate for a touch of elegance. Tree Line is designed to be paired with the Lorenz collection for even greater flexibility.
Made In		Europe

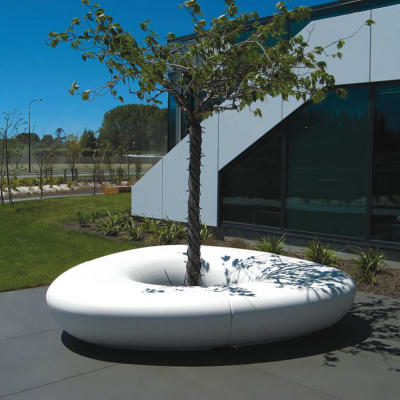

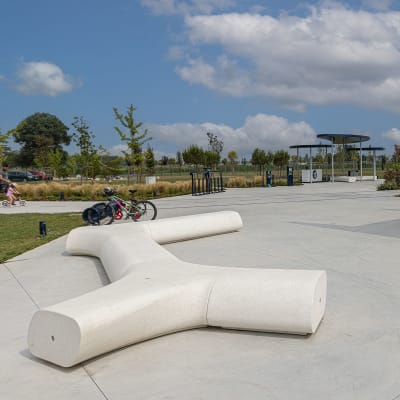

Dimensions		Short bench 1000mmW x 750mmD x 460mmH Long bench 2200mmW x 750mmD x 460mmH Short seat 1000mmW x 750mmD x 795mmH Seat height: 460mm Long seat 2200mmW x 750mmD x 795mmH Seat height: 460mm 120° curved bench 2070mmW x 1200mmD x 460mmH Y join module 1915mmW x 1625mmD x 460mmH
Weight		TREE.1000 1000mmL Treeline bench: 707kg TREE.2200 2200mmL Treeline bench: 1560kg TREE.S.1000 1000mmL Treeline seat: 815kg TREE.S.2200.1.BR.LH 2200mmL Treeline seat, single left backrest - 1670kg TREE.S.2200.1.BR.RH 2200mmL Treeline seat, single right backrest: 1670kg TREE.S.2200.2BR.AL 2200mmL Treeline seat, double aligned backrests: 1780kg TREE.S.2200.2BR.LH.OP 2200mmL Treeline seat, double opposite backrests: 1780kg TREE.S.2200.2BR.RH.OP 2200mmL Treeline seat, double opposite backrests: 1780kg TREE.C Curved 120° C shape bench: 1480kg TREE.JN Joining Y shaped bench: 1780kg
Frame		Body Precast concrete with stone aggregate 4 options: White Granite, Grey Granite, White Marble, Black Marble Body Finish Sandblasted Optional Clear anti-graffiti coating (to the concrete body)
Warranty		5-year warranty. View the warranty for more details.
Lead Time		12+ weeks.
Assembly & Delivery		Product supplied packed on pallets. Lifting equipment required for receipt and placement of concrete product (by others). Supplied with ferrules, eyebolts and caps.
Fixing Detail		Freestanding
How to Specify		Design your layout with your select modules Check the module directions match up Send your layout marked up with codes to Botton + Gardiner to review and quote
Care Instructions		Precast Concrete Cleaning Remove any loose surface deposits with a brush. Regularly wash the coating using a solution of warm water and non-abrasive, pH neutral detergent solution (with low wax content). Thoroughly rinse the surfaces after cleaning to remove all residues. You can use a sponge, a soft bristle brush or pressure water cleaners. For pressure cleaners ensure you use cold or warm water and average pressure. Rinse after with fresh water and leave to dry. Do not use abrasive sponges, discs, or brushes. Do not use corrosive detergents, descaling agents, or acidic components (bleach, ammonia, vinegar, abrasive pastes). For cleaning marks or solidified substances from the surface use slightly abrasive sponges for non-stick ceramic pans, accurately and lightly treat the parts to be cleaned as above. Please check with Botton + Gardiner for advice relating to cleaning special circumstances (i.e. stains from paint, acid, etc.) as required. Maintenance For surfaces prone to additional wear like that used for street furniture, regular treatment is recommended (at least every 2 years) with products containing high wax content. Evenly apply the product with a soft cloth and polish with a circular motion. Avoid the products from being placed on surfaces subject to infiltrations or stagnant water puddles.
Additional Comments		Customisable Wide variety of ways modules can be placed together allows for customisation of the configuration. Options The bench ends of the Treeline are both slightly angled and more elliptical than circular. This results in modular pieces needing to match directionally to fit together. See downloads tab for more information for end directions on each piece especially outlining direction in relation to the backrest locations for seats. Upon request, if the product allows it, it is possible to perform polishing operations. The finished products are treated with a revitalising varnish and, if requested, anti-graffiti treatment can be applied.
